Authentication and Keycloak

Three hosts share the work:

sequenceDiagram
    participant B as Browser
    participant W as Web (BFF)
    participant A as Auth server
    participant K as Keycloak
    participant API as API
    B->>W: /bff/login
    W->>A: OpenID Connect, PKCE
    A-->>K: optional external login
    K-->>A: verified email
    A-->>W: code, tokens
    W-->>B: session cookie
    B->>W: /api/... with cookie
    W->>API: bearer token

Host	Package	Job
Auth	Coworkee.AuthServer	OpenIddict server, sign-in, registration, password reset, two factor, account page, external providers
Web	Coworkee.Bff	keeps tokens on the server, gives the browser a cookie, forwards /api, /odata, /hubs and /admin/jobs
API	Coworkee.AspNetCore	validates bearer tokens (AddCoworkeeApiAuthentication)

The browser never sees an access token. The sign-in with its tokens lives in a server-side session store (Redis when a redis connection string is set, otherwise memory), so the cookie only holds a session key. Requests from the client carry the X-CSRF: 1 header, which ApiClientBase adds.

Security headers of the web app

app.UseCoworkeeSecurityHeaders() (before UseStaticFiles and MapCoworkeeBff) sends a Content-Security-Policy, X-Content-Type-Options: nosniff and Referrer-Policy: strict-origin-when-cross-origin with every answer of the web host. The policy fits the Blazor WebAssembly client:

Directive	Sources	Why
script-src	'self' 'wasm-unsafe-eval' 'unsafe-eval' and the file viewer CDNs	WebAssembly, and BlazorJS of MudBlazor.Extensions evaluates script strings
style-src	'self' 'unsafe-inline' and the file viewer CDNs	MudBlazor positions with inline styles
img-src	'self' data: blob: https:	previews, logos and credits from other hosts, the tiles of the map viewer
media-src, frame-src, object-src	'self' data: blob:	MudExFileDisplay shows video and audio, and PDFs and other files in object or iframe
connect-src	'self' and the file viewer CDNs	the browser talks to this host, which forwards the API and the hubs, and loads viewer modules
frame-ancestors	'self' and Coworkee:Bff:FrameAncestors	the AirWorks host may frame the pages

The file viewer CDNs are Coworkee:Bff:SecurityHeaders:FileViewerCdns (https://cdn.jsdelivr.net, https://esm.sh, https://unpkg.com). MudExFileDisplay loads the viewers of many types from there the first time it shows one (Word, Excel, PowerPoint, maps, 3D models, HEIC, PSD, Parquet, ...), so every file shows out of the box. The trade-off is third-party script: an app that wants none clears the list and loses the preview of those types (pictures, video, audio, PDF and text keep working):

app.UseCoworkeeSecurityHeaders(headers => headers.FileViewerCdns.Clear());

The inline onerror fallback of MudExFileDisplay is not allowed: its script differs per viewer, so no hash covers it; without it only that fallback message stays away.

In Development connect-src also allows http://localhost:*, ws://localhost:* and wss://localhost:* (browser link and hot reload). Answers with their own policy (uploaded files, also when the web host forwards them from the API, and the loading screen logo) keep it and get no second one.

Extra sources per directive come from Coworkee:Bff:SecurityHeaders:Sources or the callback; ContentSecurityPolicy replaces the whole policy (frame-ancestors is then yours to set), ReferrerPolicy the referrer policy:

app.UseCoworkeeSecurityHeaders(headers =>
{
    // the cloud pickers of the Files module
    headers.Sources["script-src"] = ["https://apis.google.com", "https://js.live.net", "https://www.dropbox.com"];
    headers.Sources["frame-src"] = ["https://accounts.google.com", "https://docs.google.com", "https://onedrive.live.com", "https://login.microsoftonline.com", "https://www.dropbox.com"];
});

"Coworkee": { "Bff": { "SecurityHeaders": { "Sources": { "frame-src": [ "https://view.officeapps.live.com" ] } } } }

Uploads stream through the web host: its forwarded routes take bodies of any size past Kestrel's limit of about 30 MB, and the API checks its own limit per endpoint (Coworkee:Files:MaxFileSize, the setting Chat.MaxAttachmentMb). Coworkee:Bff:MaxRequestBodySize (bytes) caps what the web host forwards.

Clients and scopes

The auth server creates its OpenID Connect clients from configuration on start. With the app host you set nothing; by hand it looks like this:

"Coworkee": {
  "Auth": {
    "ApiScopes": { "myapp_api": "myapp_api" },
    "Clients": [{
      "ClientId": "myapp-web",
      "DisplayName": "MyApp",
      "Scopes": [ "myapp_api" ],
      "RedirectUris": [ "https://localhost:7300/signin-oidc" ],
      "PostLogoutRedirectUris": [ "https://localhost:7300/signout-callback-oidc" ]
    }]
  }
}

Outside development, configure SigningCertificate and EncryptionCertificate (PKCS#12 path and password).

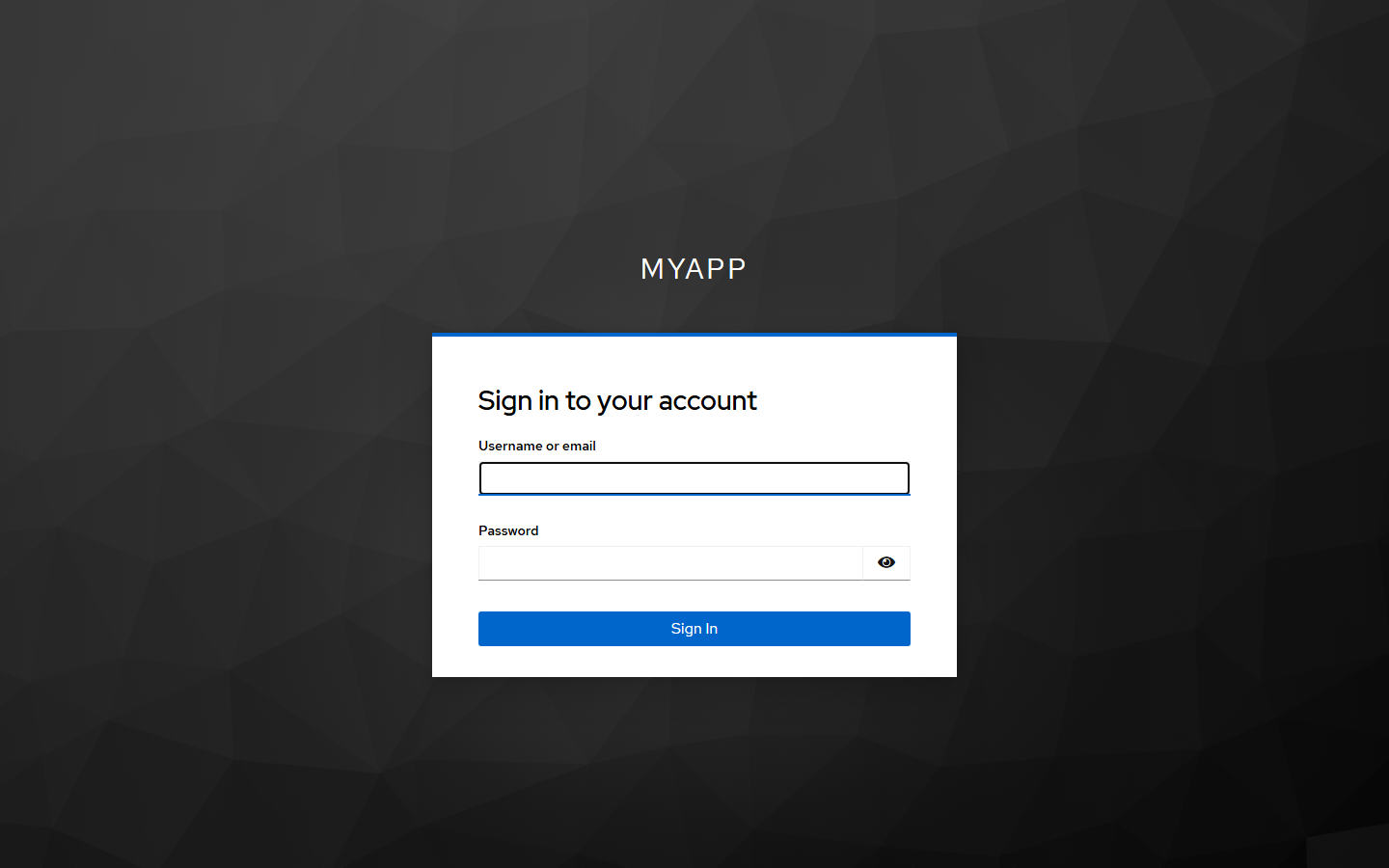

External login with Keycloak

Any OpenID Connect provider can sign users in. Each one is a section under Coworkee:Auth:External:Providers:

"Coworkee": {
  "Auth": {
    "External": {
      "Mode": "Both",
      "AutoProvision": true,
      "Providers": {
        "keycloak": {
          "DisplayName": "Keycloak",
          "Authority": "https://keycloak.example.com/realms/myapp",
          "ClientId": "myapp-auth",
          "ClientSecret": "..."
        }
      }
    }
  }
}

Setting	Meaning
Mode	Internal password only, External providers only, Both (default)
AutoProvision	create a user on the first external sign-in when no account has the email
Scopes	defaults to openid profile email
RequireHttpsMetadata	false only for a local Keycloak on http

On sign-in the auth server looks for the user in this order: the linked external login, then an account with the same email, then a new account. Linking by email requires the provider to mark the address as verified (email_verified) or to be configured with TrustEmail, otherwise the sign-in is refused. New users follow the registration settings and start without roles.

Locally, options.UseKeycloak() in the app host starts Keycloak with a realm for the app and configures all of this.

Setup wizard or seed

A new installation needs a tenant and a first administrator. Two ways:

Wizard. The API answers 503 setup_required until setup is done. The Blazor client shows the setup page: checks, organization, administrator, theme. Sharemee works this way.

When does the setup page show up? Whenever the database has no set up system: an empty database without a seed (no AddCoworkeeIdentitySeed, or a template app whose demo users are switched off), and a deployment without a first administrator (<APP>_ADMIN_EMAIL and _ADMIN_PASSWORD left empty). Apps generated with demo users are set up by their migrations and never show it.

The page asks for the setup token. Where to find it:

• Local run (coworkee run, Visual Studio, Coworkee Studio): the app host gives every service one token (its own Coworkee:SetupToken, otherwise a new one per run). While the system is not set up it prints Setup token of <app>: <token> - open https://.../setup?token=... on its console, writes the same line into the api's log, adds a Setup link (token included) to the web resource and the property Setup token to the api in the Aspire dashboard. Coworkee Studio shows the token with a copy button on the run card of the Create page and under My apps.
• Deployment: the parameter <app>-setup-token; coworkee deploy fills it in .env (<APP>_SETUP_TOKEN) and names it at the end when no administrator is set.
• Without either: the api makes one up at start and writes it to its log (System is not set up yet. Setup token: ...); or set Coworkee:SetupToken.

A setup page left open in another tab leaves for the app as soon as setup is done: it asks again when the tab gets the focus and when another tab finishes, and a set up system never shows the wizard (/setup goes to /).

Seed. AddCoworkeeIdentitySeed in the migration service creates everything on the first start; the wizard never appears. The template works this way.

public static void Configure(IdentitySeedOptions seed)
{
    seed.TenantName = "MyApp";
    seed.Roles.Add(new SeedRole("Brand Manager", "Maintains brands", [CatalogPermissions.Brands.View, CatalogPermissions.Brands.Edit]));
    seed.Users.Add(new SeedUser("admin@example.com", password, "Ada", "Admin", IsAdmin: true));
    seed.Users.Add(new SeedUser("brands@example.com", password) { Roles = ["Brand Manager"] });
}

Account features

Registration is off by default; the setting Account.AllowRegistration turns it on, and apps from the template seed it on (--registration false leaves it off). The wizard, activation, allowed addresses, documents and the sign-in rules are described in Registration and sign-in rules; layout, theme and media of the account pages in Sign-in pages and designs. Users change password and two factor settings on the account page of the auth server, linked from the user menu. The email address changes under Account > Security in the app: after the current password, the new address gets a confirmation link and the old one a notice; the old address keeps working until the link is opened. An address another account uses gets no link, and the answer is the same, so nobody learns which addresses exist.

On a user's page administrators edit everything about the user: user name, names, phone, address, language, active, email confirmed, the address itself (at once, confirmed or with a confirmation mail; the old address gets a notice), the password (set one or send a reset link), an invitation for users without password, lockout, two-step verification reset, external sign-ins, roles, groups and the picture. New users are created in a dialog, either invited by mail to choose a password or with an initial password.

Administrators manage further clients and scopes in the app, end sessions at once and set password rules: see Clients, sessions and password rules.
