Theming

Themes are data: palettes for light and dark mode, typography, border radius, drawer width and app bar height, shadows, logo, custom CSS, and the app's own options. Twenty-one built-in themes ship with the package (see Built-in themes); they differ in fonts, radius, navigation width and behaviour, not only in colors.

• Administration > Themes (Themes.Manage) shows a tile per theme: light and dark colors, name, published state, Edit, Make default and Delete (own themes only, after a confirmation). Edit and New theme open a MudExThemeEdit<CoworkeeTheme> with a live preview; a new theme starts from one of the existing themes. Built-in themes stay read-only, saving one creates a copy.

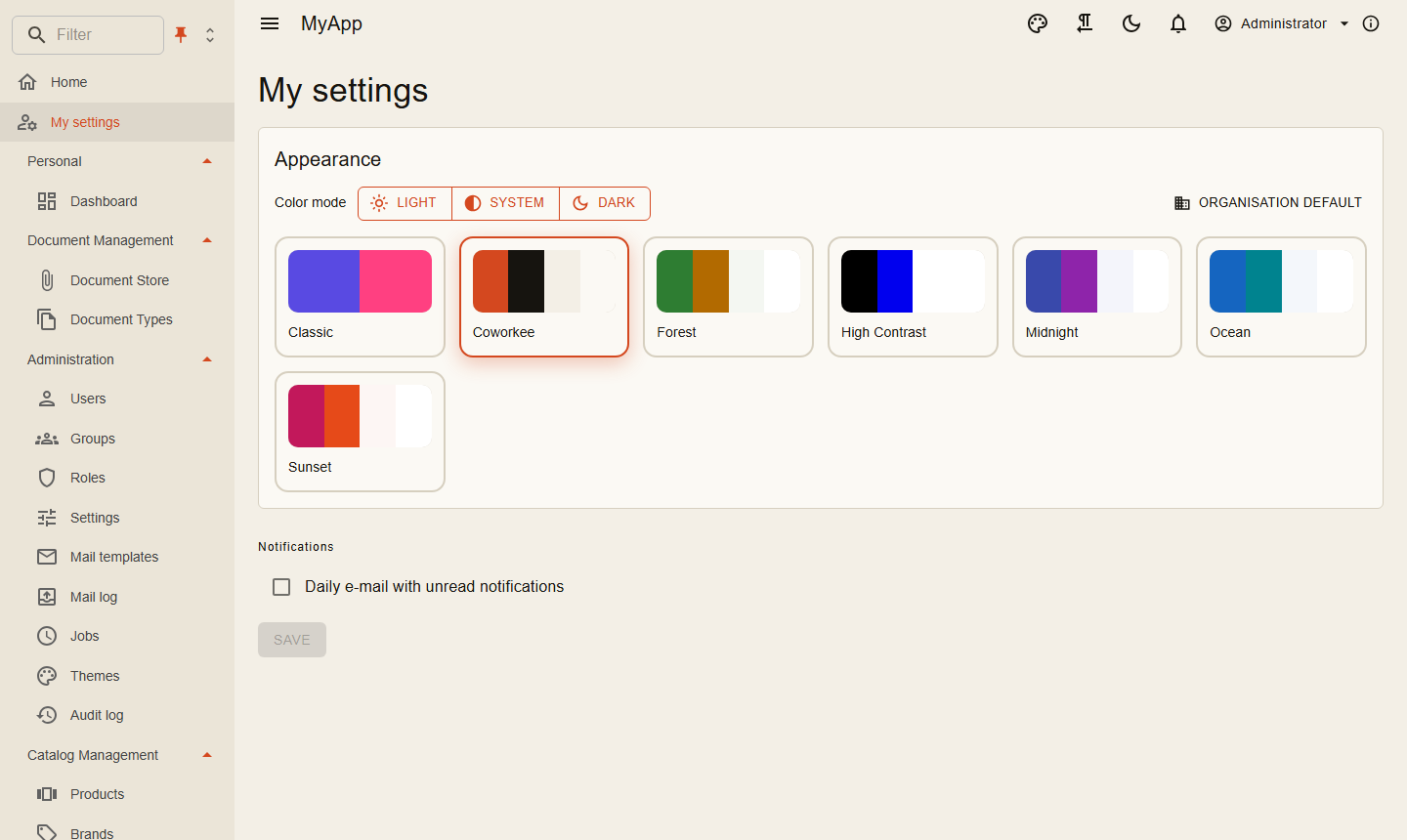

• Everyone can choose the built-in themes and the published ones; the tenant default applies until a user picks another theme (and light, dark or system mode) in the account settings or from the palette in the app bar.
• CoworkeeTheme derives from MudTheme and adds: ShowLogoInNav, ShowLogoInAppBar, ShowNavFilter, CanPinNav, CanChangeNavExpandMode, NavSingleExpand (until the user chooses), Dense, StripedTables, IsPublished, Logo, CustomCss. All of them are fields in the editor. CustomCss is a stylesheet for the whole app (rendered after the theme), edited with the CssRulesEditor: in Rules mode a list of rules (a selector and a style editor each, with move and delete buttons) and Add rule; in Raw mode the whole stylesheet in a Monaco code editor (also full screen). At-rules, comments and nested CSS stay raw blocks in the rules list. The mode is remembered per browser; saving from the rules list normalises the CSS (one declaration per line), an empty stylesheet is stored as nothing. CssRulesEditor is also usable on its own (Value, ValueChanged, Label, HelperText, ReadOnly).
• Dense (on by default) makes the whole UI compact: tables, lists, menus, tree views, alerts, expansion panels and checkboxes render Dense, inputs and selects use Margin.Dense, chips Size.Small. Forms (MudExObjectEdit) and the navigation menu keep their normal size. Themes saved with the former DenseTables option keep their value.
• The library's components inherit CoworkeeComponentBase, which receives the theme's Density as cascading value (Density.Dense, Density.Margin, Density.Size). Own components can do the same: @inherits CoworkeeComponentBase or [CascadingParameter] Density Density { get; set; } = Density.Default;. A model's own IObjectMetaConfiguration<T> replaces the dense object edit configuration for that model.
• Logo is SVG markup or an image data URL (PNG, JPEG, WebP or SVG, at most 512 KB; SVG is rejected when it contains scripts, event handlers or embedded documents). The editor shows it with ThemeLogoEdit: a preview, Choose logo (upload, the configured cloud drives, or Choose from files with the app's files) and Use app logo. Raster images larger than 512 px are shrunk in the browser first. The logo appears in the app bar, the navigation, setup, the about dialog and the account pages, and is the favicon while it is set.
• Without a theme logo the app's own logo shows: options.AppLogo = "logo.svg" in AddCoworkeeClient (Coworkee:Auth:LogoUrl for the account pages).
• On the server ThemeLogo.TryRead(theme.Logo, out var bytes, out var contentType) (Coworkee.Contracts.Theming) turns either form into bytes and content type, for example to write the logo to a file.
• The column LogoSvg of the theme table is now Logo: add a migration to an existing app (EF Core renames the column when you edit the generated migration to use RenameColumn).
• Setup offers the theme as one of its steps.
• The auth server's account pages follow the default theme's colors, font and logo. Their layout and media are one setting for the whole installation: the card Sign-in page at the top of Administration > Themes, see Sign-in pages and designs.
• The theme editor's fields come from MudEx object edit metadata. The library registers CoworkeeThemeEditMeta as IObjectMetaConfiguration<CoworkeeTheme> (the Logo and CustomCss fields); register your own after AddCoworkeeClient to render fields differently (it replaces the library's):

builder.Services.AddScoped<IObjectMetaConfiguration<CoworkeeTheme>, MyThemeEditMeta>();

public sealed class MyThemeEditMeta : IObjectMetaConfiguration<CoworkeeTheme>
{
    public Task ConfigureAsync(ObjectEditMeta<CoworkeeTheme> meta)
    {
        meta.Property(t => t.Logo).WithLabel("Company logo");
        return Task.CompletedTask;
    }
}

- ThemeService in the client applies a theme at runtime (Apply, Preview, SetMode).

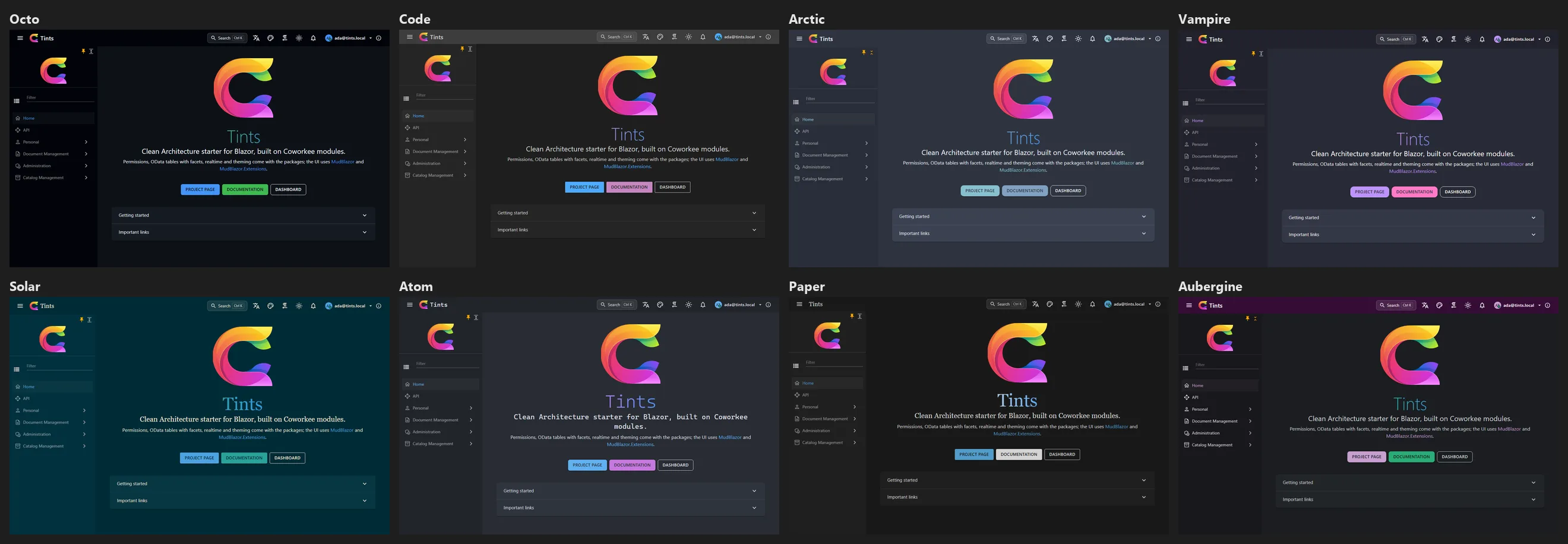

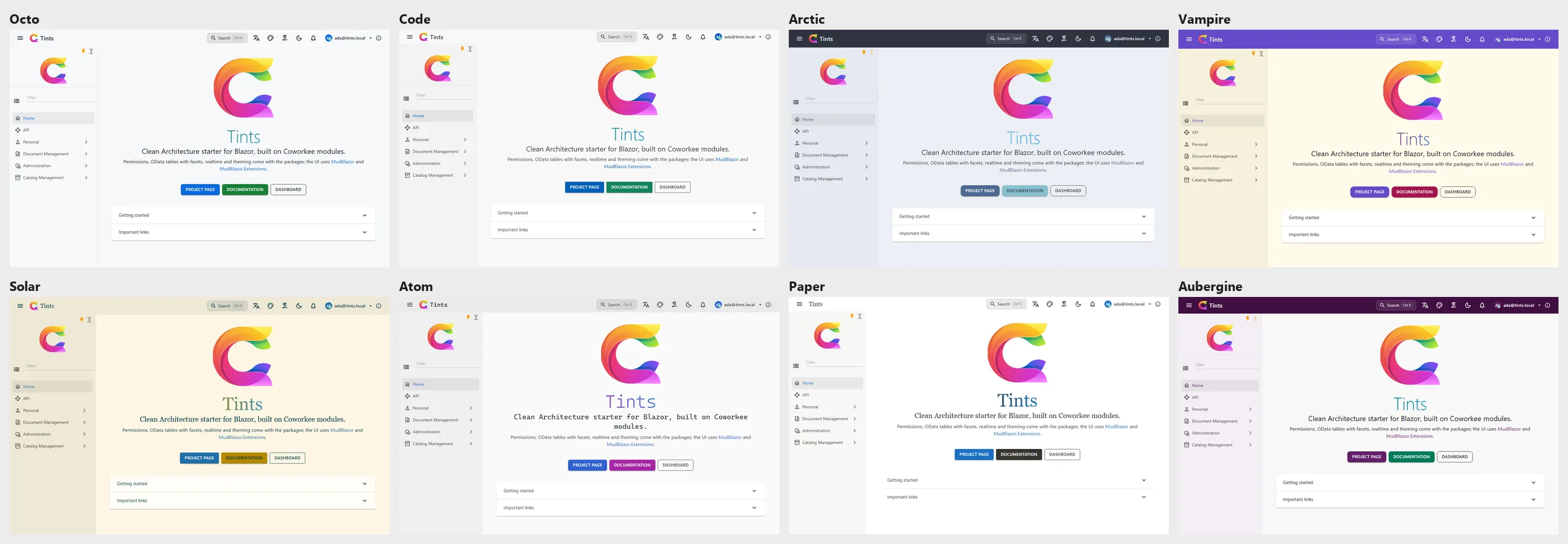

Built-in themes

Each one has a light and a dark palette. The names only hint at what inspired them and none ships a logo; GitHub is named after the site it follows. They also differ in where the logo sits: in the menu, in the header, in both or nowhere (ShowLogoInNav, ShowLogoInAppBar); LinkHub brings custom CSS for its pill buttons. The newer ones (from Octo on) meet WCAG AA contrast for text, buttons, app bar and navigation (ThemeSeedTests).

Theme	Look	Headings / text	Radius
Ocean (default)	blue app bar, cyan accent	Segoe UI	14 px
Coworkee	warm orange on paper	Inter	6 px
Classic	MudBlazor purple	Roboto	4 px
Forest	green, amber accent	Georgia / Segoe UI	4 px
Sunset	pink, roomy	Trebuchet MS	20 px
Midnight	indigo, violet accent	Cascadia Code / Inter	8 px
High Contrast	black and white (yellow on black in dark), no shadows	Arial	0
Octo	neutral grays and blue, like a code hosting site	system font	6 px
Code	editor look: compact, gray title bar, blue	Segoe UI, dense	2 px
Arctic	cool polar blues and frost, dark app bar	Inter	10 px
Vampire	purple and pink on a night background (cream by day)	Inter	12 px
Solar	warm cream and deep teal, amber accent	Georgia / Segoe UI	4 px
Atom	soft editor grays, blue and violet	Cascadia Code / Inter, dense	6 px
Paper	plain white paper, flat (no shadows)	Georgia / Inter	4 px
Aubergine	aubergine app bar (and navigation in dark mode), green accents	Lato	8 px
GitHub	dark header, white pages, blue links, like GitHub; logo in the header only	system font	6 px
LinkHub	link page look: lime and violet, pill buttons, roomy; logo above the menu only	Lato	24 px
Terminal	green on black like a shell, monospace, square; no logo, flat	Cascadia Code, dense	0
Slate	dark sidebar next to light pages, indigo; logo above the menu only	Inter	8 px
Ember	amber on charcoal, dark header; logo in the header only	Inter / Segoe UI	6 px
Mint	fresh mint and teal, roomy; logo in the header only	Trebuchet MS / Lato	12 px

Pick one for a new app with coworkee new --theme Octo (or theme in the spec), in Coworkee Studio on the Branding page, or later as the organisation's default under Administration > Themes.

Loading screen

While the WebAssembly app loads, the web host shows a loading screen in the colours and with the logo of the organisation's default theme (the installation's default before sign-in). The template's App.razor places it at the start of the body:

<Coworkee.Bff.CoworkeeLoadingScreen Logo="coworkee-icon.svg" />

• The server renders it (static, from GET /api/v1/themes/loading-screen, which anyone may call; cached per organisation for 30 seconds, at most 2 seconds of waiting, neutral colours when the API does not answer), so the first paint already has the right colours. The layout remembers the user's colour mode, the theme they applied and their language in the cookie coworkee-loading (mode, theme, culture): light or dark follow it, else the system preference. A signed-in visitor gets the theme they chose (?themeId=, checked by the API: only a built-in or published theme of their own organisation, the same answer for everyone there; anything else, and every anonymous visitor, gets the default). The texts come in the cookie's language, else the browser's (Accept-Language), mapped to one of the app's active languages (/api/v1/localization/languages: de-AT becomes de, an inactive language English), from /api/v1/localization/texts/{culture}. The logo and the script are separate, cacheable requests (/bff/loading-screen/logo?v={theme}-{revision}, /bff/loading-screen/script.js?v={hash}; no inline script or event handler, so a Content-Security-Policy with script-src 'self' is enough), and the page is sent with Cache-Control: no-cache, no-store because it carries the visitor's theme and language.
• The ring around the logo shows Blazor's real download progress (--blazor-load-percentage); while there is none (runtime from the cache, start-up) it spins. CoworkeeLayout and SetupLayout fade it out once the theme is applied (they claim the screen with a hidden [data-coworkee-loading-claim] element). Without such a claim, e.g. an app with its own layout or a page without CoworkeeLayout, the screen fades out as soon as the app has rendered its first content; an own layout that applies a theme first renders the claim element itself and calls window.coworkeeLoadingScreen.hide() (30 seconds after the download finished a claimed screen hides itself).
• When the start fails (Blazor shows its error UI after a download or boot error, an unhandled exception or a circuit failure; a framework script does not load; an error or rejected promise of the framework goes unhandled) the screen at once becomes a message in the same design: The app could not start., a hint, Reload and Details with the error (the last console error). Blazor's own #blazor-error-ui stays hidden while the message shows; an app's code can call window.coworkeeLoadingScreen.fail(detail) itself.
• Background: the setting Loading screen on the card Sign-in page (Administration > Themes): Animated background (default, soft moving shapes in the theme's colours), Image or video of the sign-in page (under a veil in the theme's colours; without media, or when it fails to load, the animation shows) or Plain background. It is stored with the sign-in design (Coworkee:Auth:Design:LoadingScreen, Animated, SignInMedia, Plain); Aspire sets it with options.SignIn.LoadingScreen.
• With prefers-reduced-motion nothing moves: no shapes, no pulse, a still video frame.
• Logo is shown when the theme has none.
• Apps created before this version add the line above to MyApp.Web/App.razor.

Default theme and app themes

ThemingOptions picks the default theme of the installation and adds themes of the app. An app theme is a built-in theme with other colors; it is seeded and kept like the built-in ones (read-only in the app, offered in setup). A changed Primary or Secondary gets a readable contrast text unless the palette names one.

MyApp.Infrastructure/MyAppInfrastructureModule.cs

context.Services.Configure<ThemingOptions>(themes =>
{
    themes.DefaultTheme = "Shop";
    themes.Themes.Add(new AppTheme("Shop", "Ocean", new Dictionary<string, string> { ["Primary"] = "#0a7d5a", ["Secondary"] = "#ff8f00" }));
});

An unknown DefaultTheme keeps Ocean. An app theme with the name of a built-in or another app theme, or based on an unknown theme, stops the host at start with a message. The default applies until an organisation chooses its own theme (setup or Make default). coworkee new --theme Forest --primary-color "#0a7d5a" writes this for you.

Keycloak sign-in page

With Coworkee:Keycloak:ThemeDirectory (Keycloak's themes folder) and ThemeName the API keeps a Keycloak login theme in the app's design: the colors of the system organisation's default theme for light and dark mode, its logo (a raster image as file next to the stylesheet, SVG embedded in it; without a logo LogoUrl), AppName above the form and the layout and media of the Sign-in page design. Relative paths (/media/welcome.mp4) are resolved against BaseUrl. The API writes the theme at start and a second after a theme change is committed or the sign-in design is saved; each file is written next to the old one and then moved over it, so Keycloak never reads half a file. The Aspire app host fills these settings and mounts the folder (see Aspire app host).

The card Keycloak sign-in page on Administration > Themes shows when the theme was written last (or why it failed) and writes it at once with Apply to Keycloak; it only shows when the API has a theme folder and only to the system organisation (other organisations get Configured: false and a 403 on apply). Write errors go to the log of the API; the card only says that writing failed. The endpoints are GET /api/v1/themes/keycloak and POST /api/v1/themes/keycloak/apply (Themes.Manage). The writer itself is KeycloakLoginTheme.Write in Coworkee.Contracts.Theming.

In production Keycloak caches themes. Share a volume between the API and Keycloak (the API's ThemeDirectory, Keycloak's /opt/keycloak/themes), set the realm's login theme to the ThemeName once, and restart Keycloak after a change of the design, or start it with --spi-theme--cache-themes=false --spi-theme--cache-templates=false if a few milliseconds per page are fine. Without ThemeDirectory nothing is written.
