Coworkee Studio¶
Coworkee Studio is the desktop wizard of the command line. It walks through a new app page by page, explains what every choice brings and costs, previews logo, theme and sign-in design, lets you describe your entities and has the CLI create the solution. It runs on Windows, macOS and Linux.
Install and start¶
That is all: coworkee ui installs the Studio (global tool Coworkee.Studio, command coworkee-ui) in the version of the CLI when it is missing, updates it when it is older, and starts it. Further arguments go to the Studio:
| Argument | |
|---|---|
--spec <file> |
Opens an app spec |
--output <folder> |
Folder in which the app folder is created |
--theme light or dark |
Color mode (default: the system's) |
--lang en or de |
Language (default: the system's) |
For local builds of Coworkee: coworkee ui --add-source <folder> --studio-version <version>.
The pages¶
The panel on the left shows where you are; every page you have seen is one click away. Alt+→ and Alt+← go forward and back, Ctrl+O and Ctrl+S open and save a spec, F1 opens the help. The badge at the top shows whether the spec is valid; problems appear on the page they belong to.
Welcome¶
Start a new app, open a spec (.json from the CLI, the MCP server or an earlier session), open an existing app or pick one of the recent specs. Below those: Start from a template and My apps.

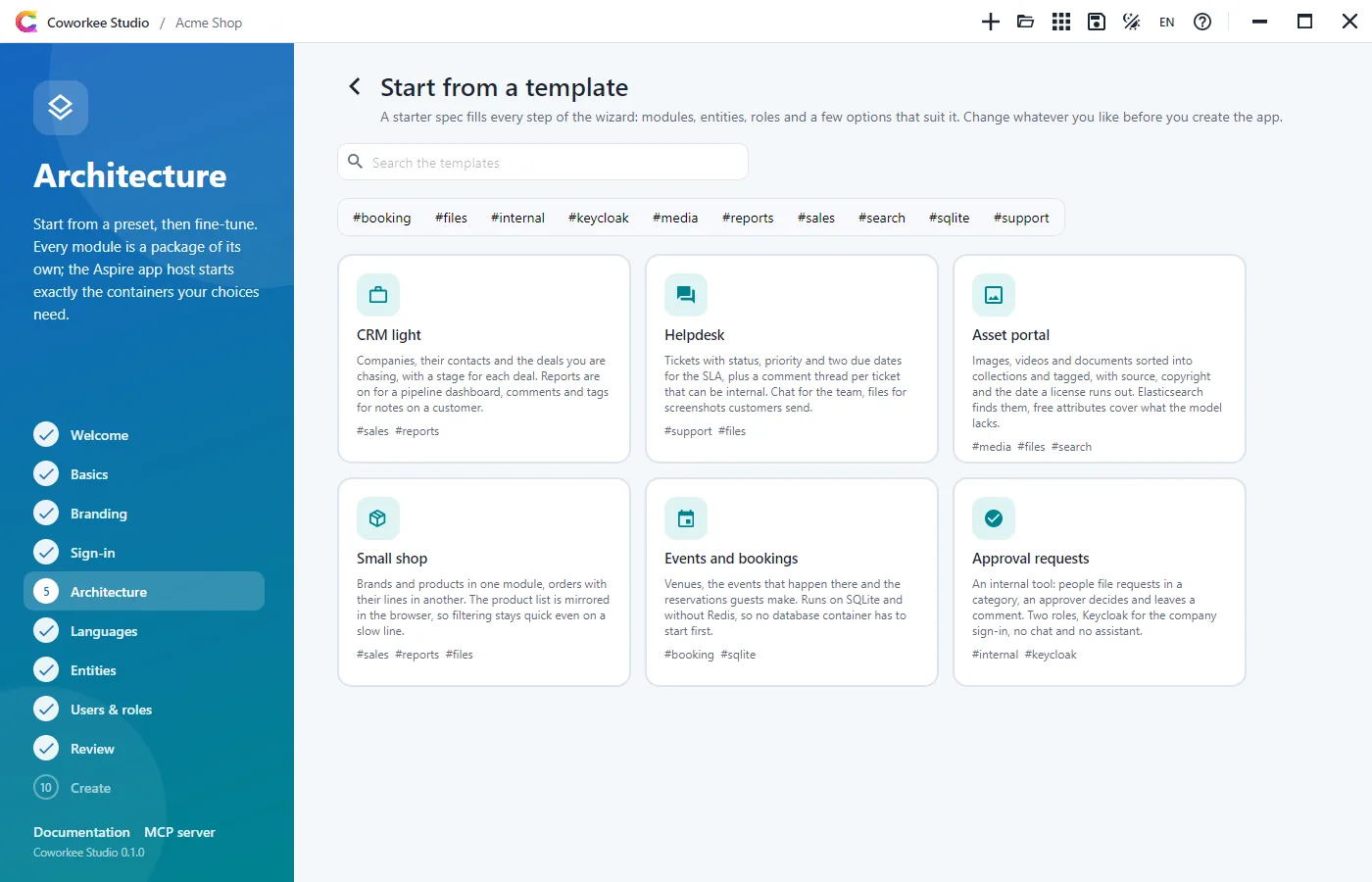

Start from a template¶
The starter specs (CRM, helpdesk, asset portal, small shop, events, approval requests) as cards with a search box and tag filter. A click fills every page of the wizard with that spec and opens Basics; from there it is your app, rename it and change what you like.
My apps¶
Every app the Studio created lands in this list, with its folder, the day it was made and the options that differ from the template. Add a folder points the Studio at the place where your apps live; it looks up to three levels down for .coworkee/app.json (written by the CLI) or a solution with an *.AppHost project, so apps made with coworkee new show up too.
For each app you see whether it runs. The Studio checks for the app host process (Shop.AppHost), so an app started from Visual Studio or coworkee run counts as well, and it warns when another program sits on the dashboard port. Start and Stop use the same runner as the Create page. While it runs, the links open the Aspire dashboard (with the login token when the Studio started it), the web app and API, and Grafana and WebDataStudio. Those two get their ports from Aspire at start-up, so their links open the dashboard, where the address is listed next to the resource. Below that sit the last line of the output and links to the folder, the solution and VS Code.
Basics¶
The name becomes the prefix of every project and namespace (Shop.Api, Shop.Web), so it is checked like the CLI checks it: a letter, then letters or digits. The title is what users read in the browser, the app bar, on the sign-in pages and in the Aspire dashboard. The location is the folder in which the app folder is created.
Branding¶
Logo, the twenty-one built-in themes as cards in light and dark, and brand colors with a color picker. The live preview draws the app shell (app bar, navigation, cards, buttons) in the colors, font and corner radius of the theme, in light and dark side by side. With brand colors the app gets its own theme, named like the title and based on the chosen one.
Sign-in¶
Card, Split or Slide, drawn as small animated sketches of the real sign-in pages, with an image or video next to the form and its side.
Architecture¶
A compact row of presets for the app type sets the modules and the infrastructure, each with its trade-off in the tooltip:
| Preset | Database | AI provider | Redis | For |
|---|---|---|---|---|
| Minimal | Postgres | (no assistant) | off | The shell, one instance; add modules later |
| Business app | Postgres | (no assistant) | on | Audit log, files, backups, client entities, CI |
| Collaboration | Postgres | Anthropic | on | Chat, comments and the assistant across instances |
| SaaS platform | Postgres | Azure OpenAI | on | Tenants, editions, Keycloak, RabbitMQ, Azure Blob |
| Local demo | SQLite | Ollama | off | Offline on one machine without keys; one writer at a time, no backups |
| Everything | Postgres | Ollama | on | Every module and every container |
Infrastructure comes next: first the choices that decide how the app runs, each with what it means right below, then Keycloak and the blob storage, then the AI provider:
- Database: PostgreSQL (every module, backups from the admin pages), SQL Server (no backups from the admin pages, a heavy container) or SQLite (no container, one file under
.data, one writer at a time, background jobs in memory, no backups). Off Postgres, the Database backups card is hidden and the module left out of the app. - Redis: SignalR backplane, shared presence, caches and sign-in sessions across instances; without it everything stays in each process, which is fine for one instance.
- Grafana and WebDataStudio: dashboards over the telemetry of every service and the app database, and the database in the browser, both with the administrator's sign-in (Grafana and WebDataStudio).
- AspireUI (off by default): a web UI in the app host to host and try more apps and stacks next to the app; they show up on the admin page Services (AspireUI).

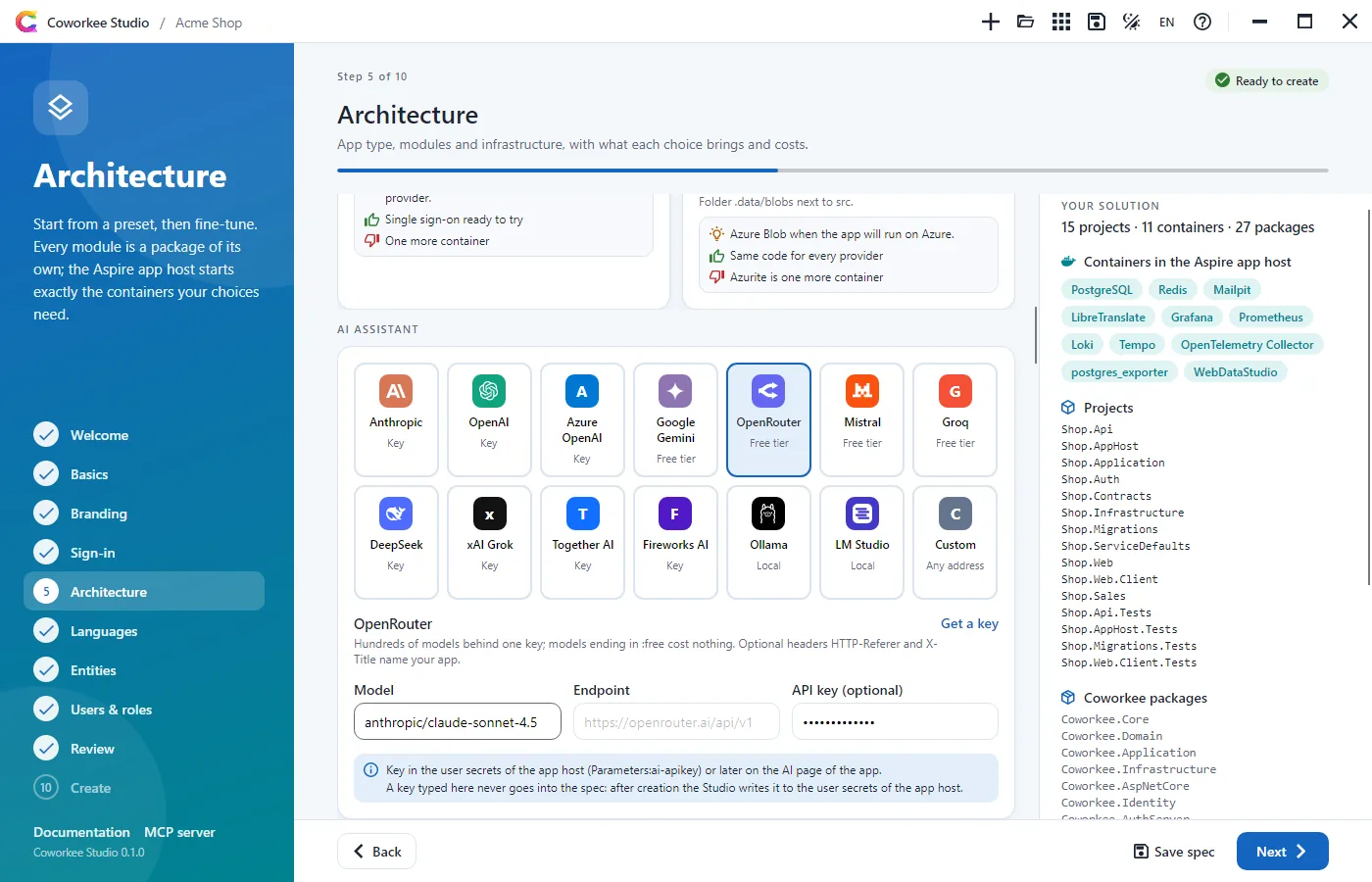

AI assistant, the last card of the infrastructure, picks the model provider from a grid with logos: Anthropic, OpenAI, Azure OpenAI, Gemini, OpenRouter, Mistral, Groq, DeepSeek, xAI, Together, Fireworks, Ollama, LM Studio or any OpenAI compatible server, with model and address (empty: the provider's defaults). It only counts with the AI assistant module; without it the card is hidden. Ollama adds a container that pulls the model. An API key typed here never goes into the spec: after creation the Studio writes it to the user secrets of the app host (dotnet user-secrets set Parameters:ai-apikey), so the assistant starts switched on. Everything stays changeable on the AI page of the app.
Below come the other groups (General, Modules, Code, Tooling) with every other option of coworkee options: description, pros, cons, when to use it, the package and the switch of coworkee new. Every card has an icon. Where an option brings a tool or product, an open button on the card opens its website: AirWorks, AspireUI, WebDataStudio, Grafana, Keycloak, Redis, Elasticsearch, GitHub Actions, the dev container, and for the database, event bus, blob storage and DTO mapping the product of the chosen choice (PostgreSQL, SQL Server, SQLite, RabbitMQ, Azure Blob Storage, Mapperly). An option that only makes sense with another is hidden until that one is on, and stays out of the spec meanwhile: the AirWorks packages (bundled or npm) appear with AirWorks client, the AI provider with AI assistant, Database backups with PostgreSQL, the media side of the sign-in with a sign-in media, which in turn needs the Split or Slide layout. What you chose stays when you switch the other option off and on again. General also holds the AirWorks client (its card links to the AirWorks documentation), the color mode, self registration and the GitHub repository (owner/repo, for the QuickRun badge in the README); Tooling adds a GitHub Actions workflow and a dev container. The panel on the right lists what the solution will contain: projects, the containers of the Aspire app host (PostgreSQL or SQL Server, Redis, Mailpit, Elasticsearch, RabbitMQ, Azurite, Keycloak, Ollama, LibreTranslate, Grafana with Prometheus, Loki, Tempo and the collector, WebDataStudio) and the Coworkee packages.

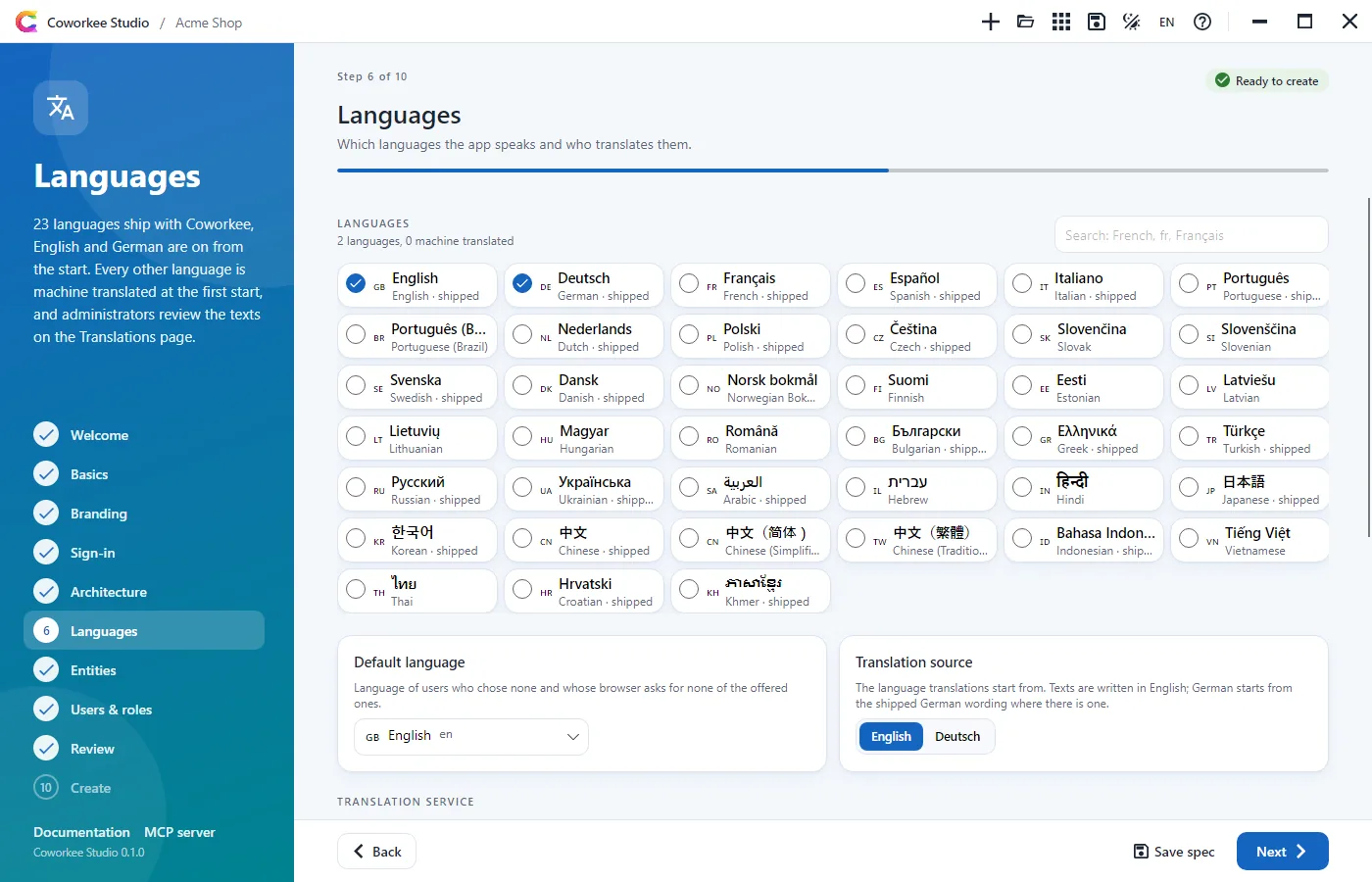

Languages¶
The languages of the app in a grid you can search by code, own or English name; 23 languages ship with Coworkee (English and German are on from the start), every other one is machine translated at the first start. Below: the default language (one of the chosen), the source language of the translations and the translation services as cards with what each costs, where the texts go and what it needs. LibreTranslate is free, needs no account and runs as a container of the app host; DeepL, Azure and Google take their key from the user secrets (Parameters:translation-key), AI uses the model of the assistant.
Entities¶
Feature modules with their entities: name, plural, client entity, DTO mapping and a grid of properties (name, type, required, maximum length). The cog of a property opens the rest: label, default value, search box, unique, display text and facet; for an enum its name, for a reference the target (Module.Entity, suggested from the designer), the shown text, the delete behaviour and the collection on the target; precision and scale for decimals and money. Below the modules, Enums holds the value lists. Problems are shown on the module, entity, property or enum they concern. The panel on the right shows what the CLI generates for the selected entity: page route, API route, permission names and files. Example adds a Sales module with customers and orders, a reference between them and an order status enum.

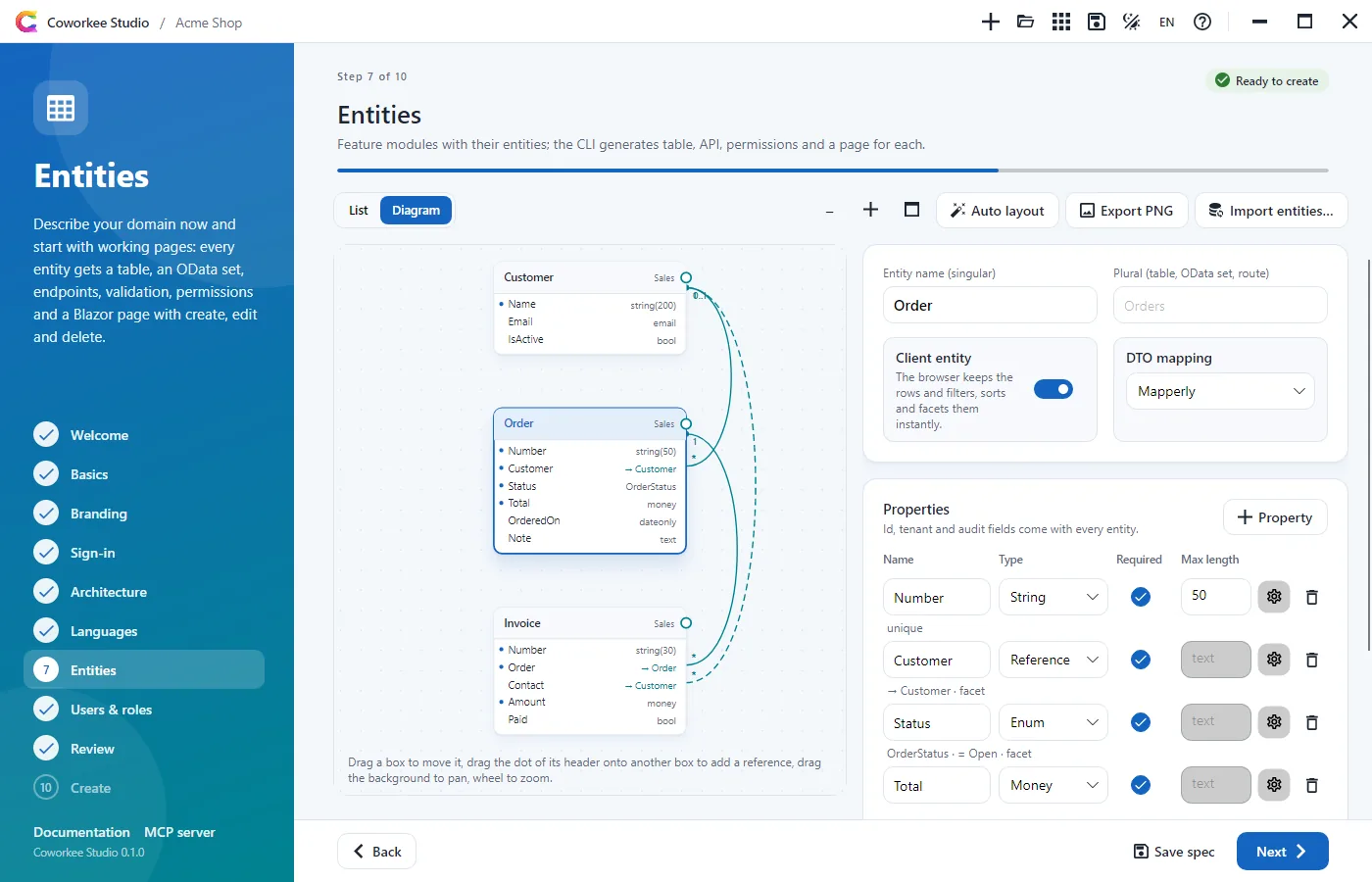

Diagram shows the same entities as boxes with their properties; references are lines from the property to the target with * on the referencing side and 1 (required) or 0..1 (optional, dashed) at the target. Drag a box to move it, drag the dot on its header onto another box to add a reference (a small dialog asks for name, required and delete behaviour), drag the background to pan and use the wheel to zoom. Clicking a box opens the entity in the editor beside the diagram. Auto layout puts referenced entities above the ones that reference them, Export PNG saves the whole diagram as an image. The positions are saved in the spec (layout of an entity) and have no effect on the generated code.

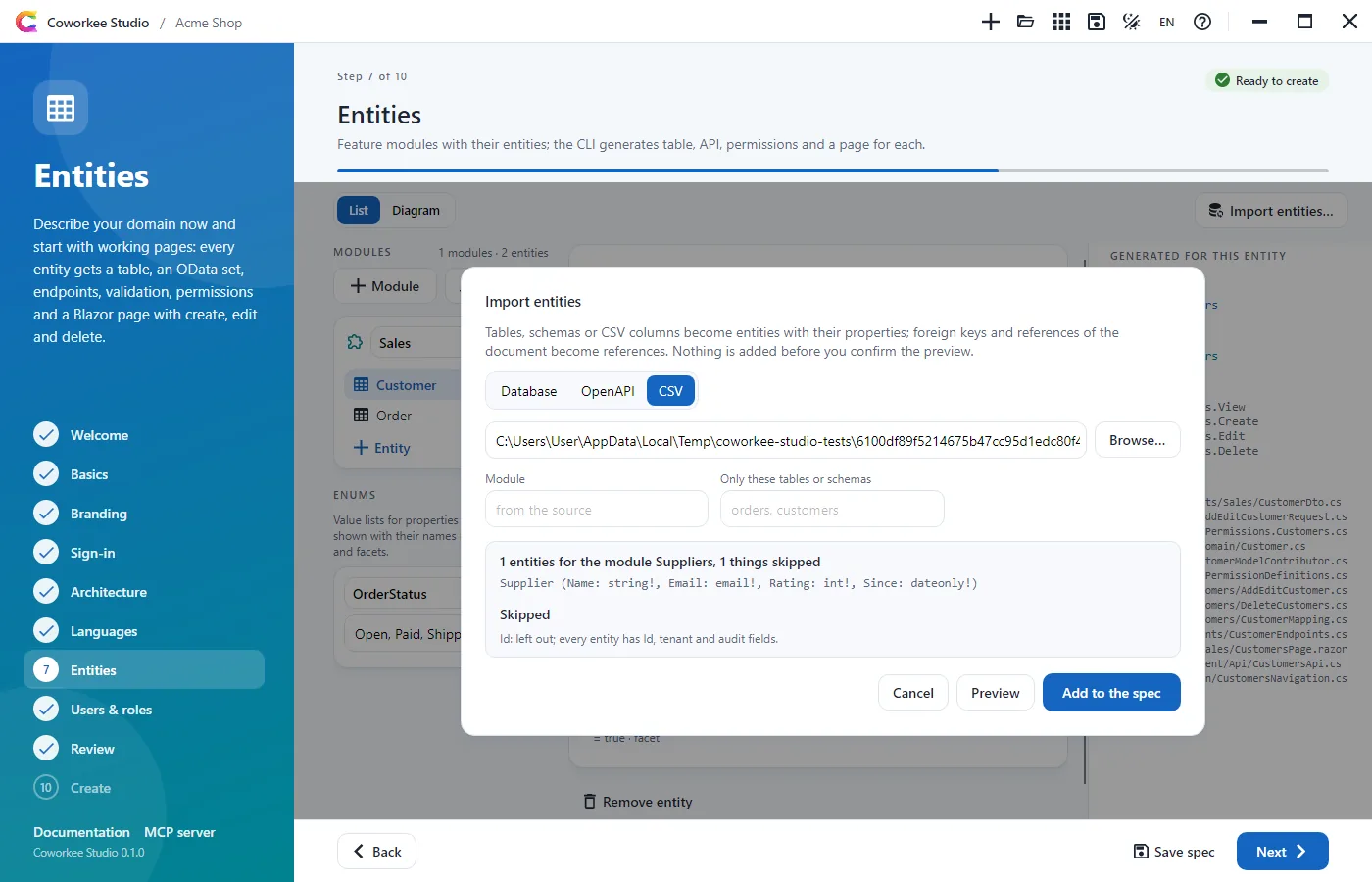

Import entities… reads a database (connection string or SQLite file), an OpenAPI document (file or address) or a CSV file with the same importer as coworkee entity import. The preview lists the entities, enums and everything that was skipped; Add to the spec puts them into a module of the same name or a new one.

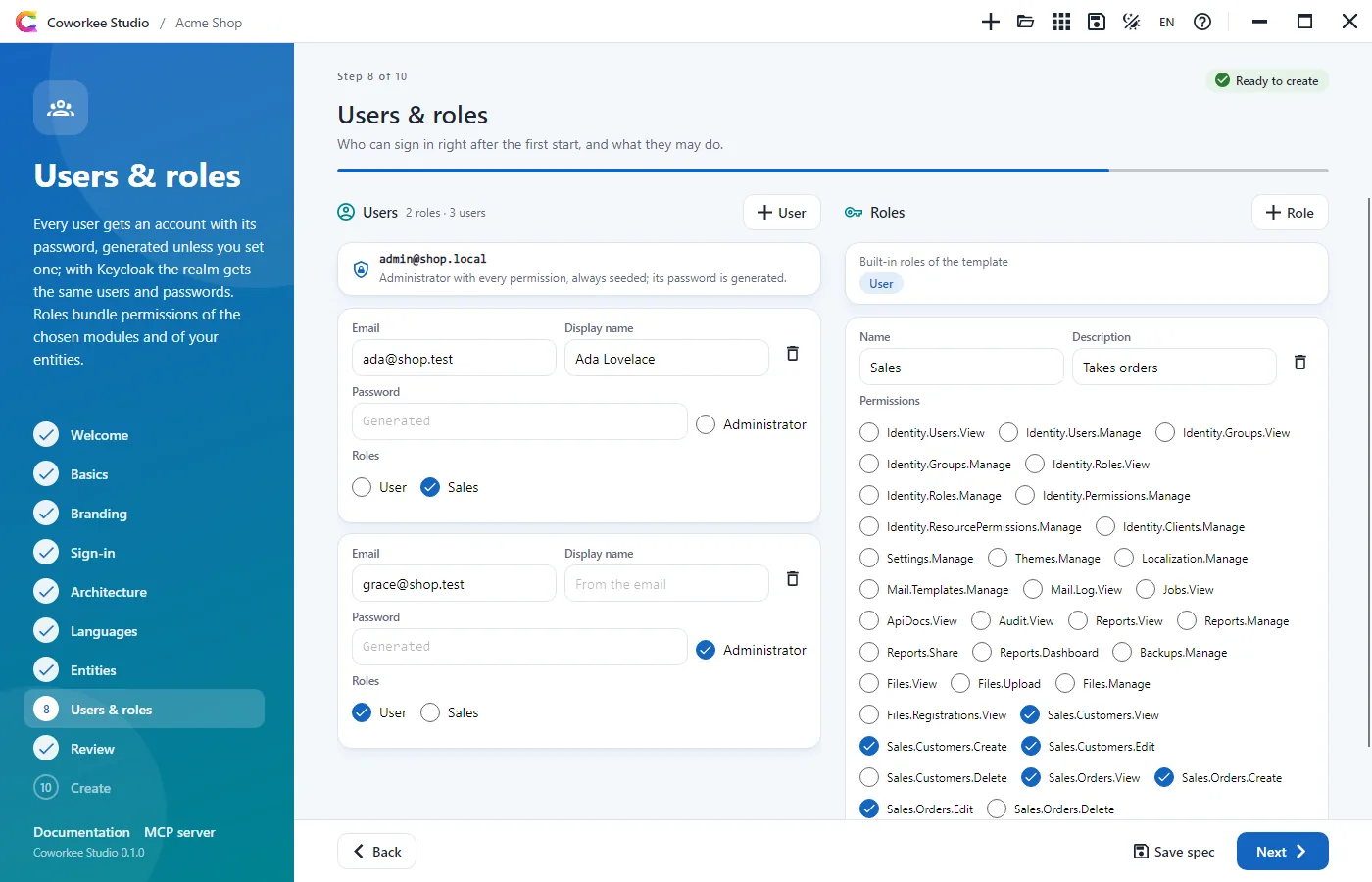

Users & roles¶
Development users and roles the app is seeded with. Each user has an email, a display name (default: from the email), an optional password (generated when empty), an administrator switch and check boxes for the roles; the administrator admin@<name>.local is always there. Roles have a name, a description and check boxes for the permissions the app will have: those of the chosen modules, of the samples and of your entities. With Keycloak the realm gets the same users with the same passwords.
Review¶
The summary (including database, AI provider, Redis, the containers, color mode, self registration and tooling), the validation with the rules of the CLI, the spec as JSON (copy or save it) and the equivalent command lines. The spec lists every module of the library under options with true or false, so with all modules on you see them all (a spec written by hand names only what differs from the defaults); your own modules and entities are under modules, and the Modules row of the summary names the ones that are on. The command lines: coworkee new --spec with everything, and coworkee new with switches for the same app without entities. Logo and media from other folders are copied next to the spec when you save it, because the CLI reads files of a spec only from its folder.
Create¶
The Studio writes the spec, runs coworkee spec validate and coworkee new --spec, and shows each step of the CLI as it happens, with the full output when you want it. Output folder, logo and media go on the command line. Afterwards the Sign in card lists every user with password and roles, with copy buttons, and says whether Keycloak takes them too (they are also in LOGIN.md of the solution). Then: open the folder, open it in VS Code, Rider or Visual Studio, run the app, or deploy it.
Run the app starts dotnet run --project <app host> inside the Studio. The card shows whether the app host is starting, running or has failed, and on failure the line that explains it (a port in use, a build error). Once it is up it links the Aspire dashboard (the login address with its token, read from the output) and the addresses of the web app, the API and the auth server (from their launch settings). The output of the app host is one click away; Stop ends the app host and what it started, and so does closing the Studio.
Deploy is the optional last step: pick a target (compose, azure or k8s) and the Studio runs coworkee deploy in the app's folder with its output live, ending with the addresses of the services and tools and the administrator's sign-in. See Deployment.
Open existing app¶
Open existing app on the welcome page takes the folder of an app created with Coworkee. The wizard opens on Review with the app's state: its .coworkee/app.json, or for older apps the options its files show. Switch modules and options on, add languages, modules and entities, then Show the changes: the Studio runs coworkee add --spec ... --dry-run in the app's folder and shows the plan (options, files to add, update, merge or delete, conflicts, modules and entities to generate). Apply the changes runs it for real, with the same live log as Create; files whose changes did not merge are listed as .rej files afterwards, see Changing an existing app.
When the CLI is not installed, the Studio offers to run dotnet tool install -g Coworkee.Cli or to use a local CLI (coworkee.exe or Coworkee.Cli.dll).

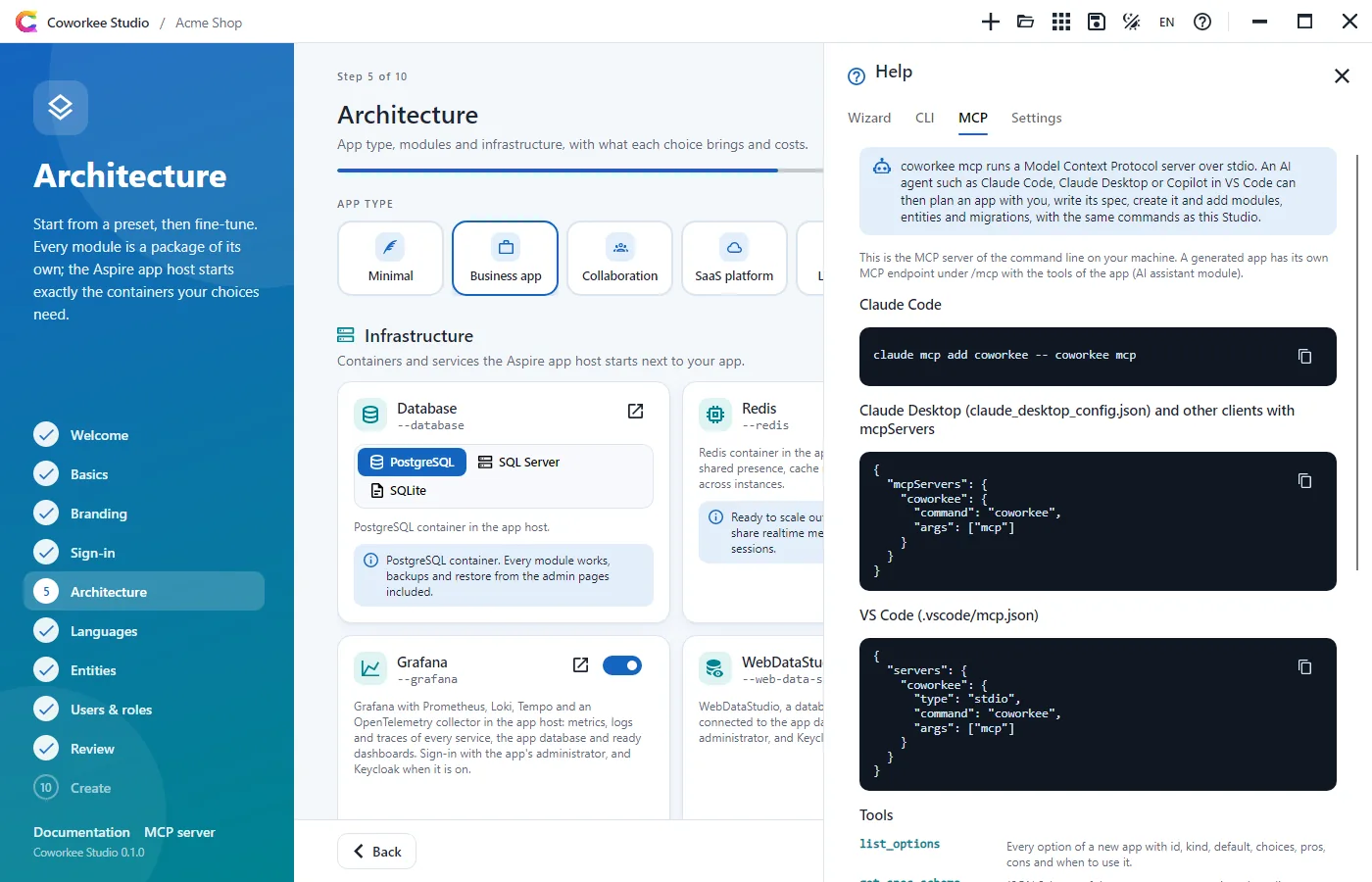

Help and the MCP server¶
The help (F1 or the question mark) explains the wizard, the CLI commands and the MCP server: what coworkee mcp is, its tools, and the registration for Claude Code, Claude Desktop and VS Code with copy buttons.
Language and updates¶
DE/EN in the title bar switches the language at once and keeps it in the settings. When nuget.org has a newer Coworkee Studio (prereleases only when the running Studio is one), the title bar shows Update available x.y.z. A click saves an opened spec, closes the Studio, runs dotnet tool update -g Coworkee.Cli and dotnet tool update -g Coworkee.Studio to that version (in a window of its own on Windows, because a running tool cannot replace its files) and starts the Studio again with the spec. From the command line: coworkee self-update.
Settings¶
The settings in the help drawer: language (system, English, German), color mode, the CLI to use (empty for the global tool, an executable or Coworkee.Cli.dll), a template source (.nupkg or folder, passed as --template-source) and a local package feed that the restore of the new app uses next to nuget.org. They are kept per user with the recent specs, the list of My apps and its folders in the application data folder under Coworkee/Studio/settings.json.
